Racetech Race Seat Mounting Set

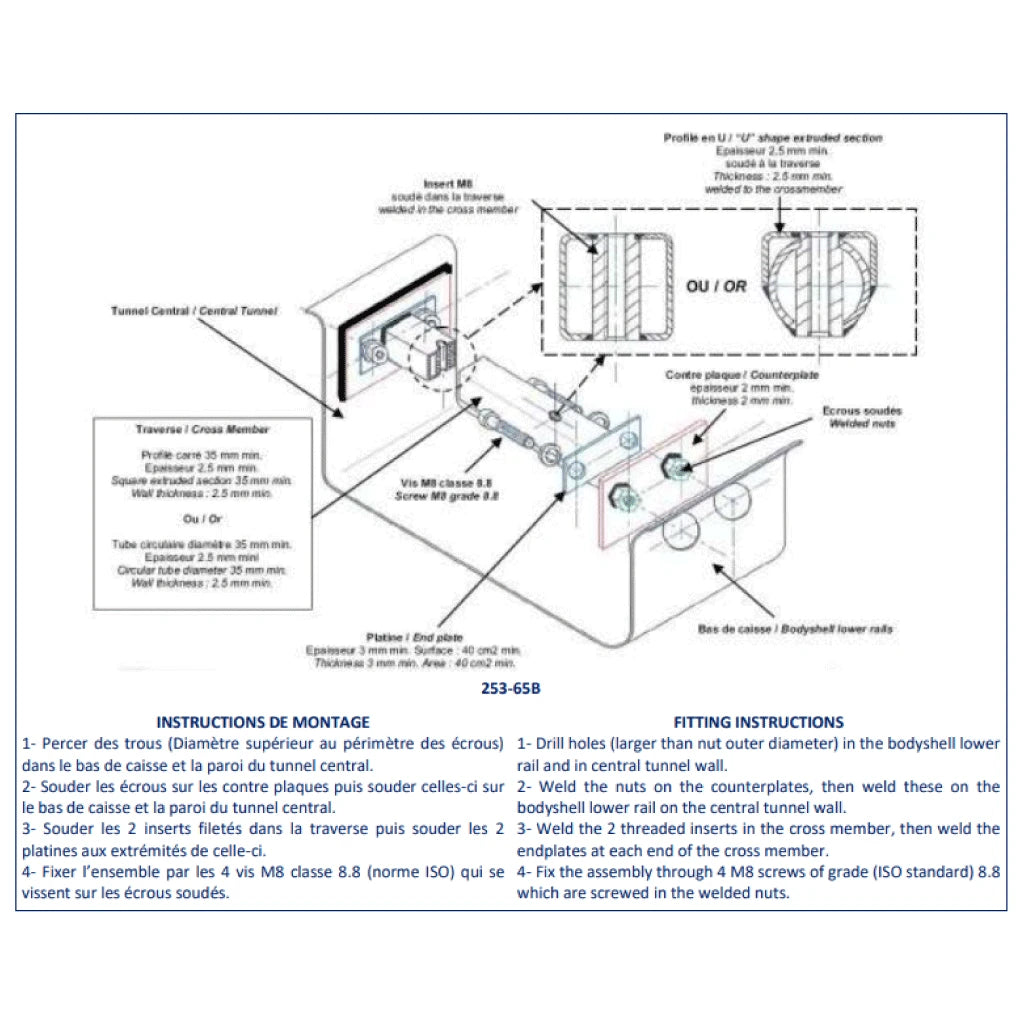

Simplify your racing seat installation and meet FIA Appendix J - Art. 253 requirements using our cross member set. This set does require some fabrication. Once the cross members are cut to suit, you must drill holes and weld in the inserts, weld the endplates. You will need to drill holes in the bodyshell lower rail and tunnel (larger than the nut outer diameter) then weld the counter plates to your bodyshell.

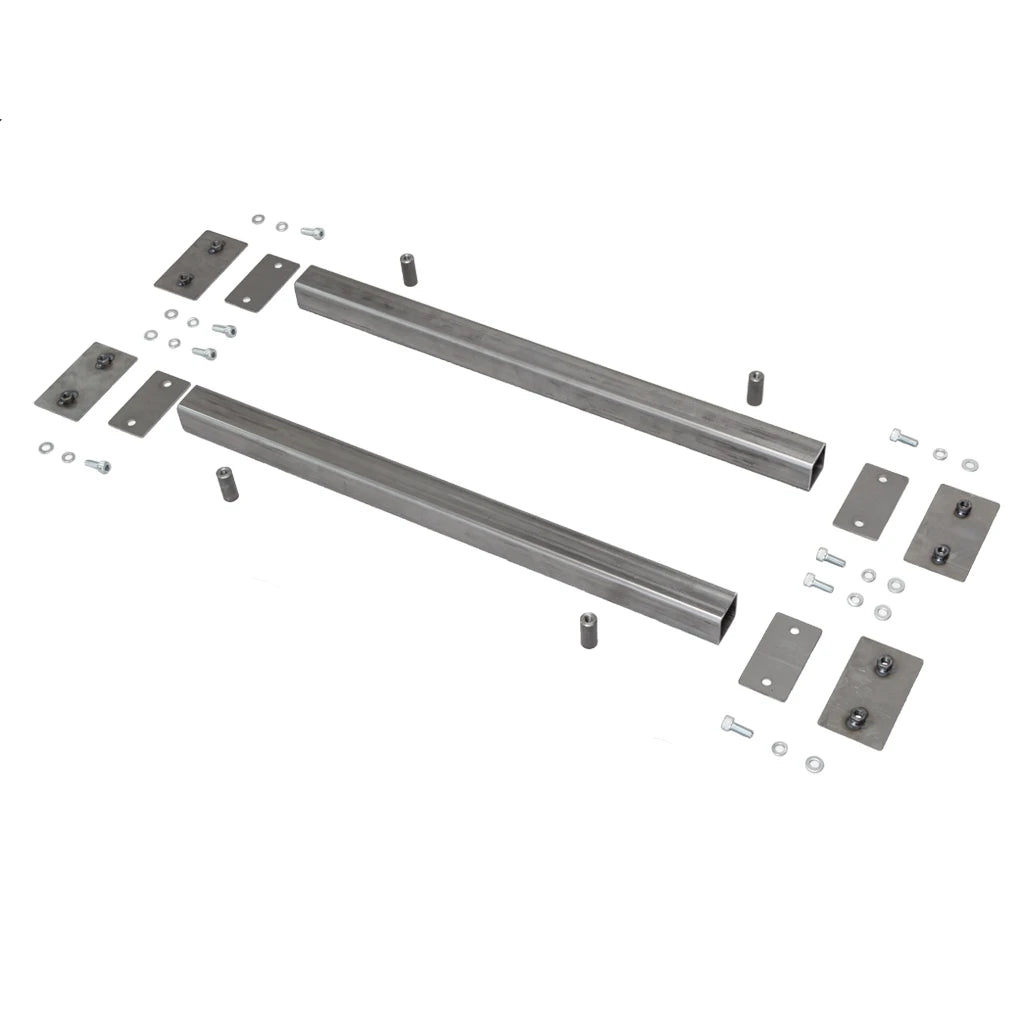

Kit Contents:

• 2x Steel transverse cross members - 608 x 35 x 35 x 2.5mm
• 4x Steel end plates - 88 x 46 x 3mm
• 4x Steel counterplates with welded nuts - 106 x 60 x 2mm
• 4x M8 threaded bosses - 37 x 16 x M8
• 8x M8 x 20 (12.9) cap screws, flat washers and spring washers
